PACE PERFORMANCE 4X4 SUSPENSION The brand-new bi-direction adjustable remote reservoir Shock Absorber from TJM has arrived. Pace Performance 4x4 Suspension has been designed to provide the ultimate off-road experience for both weekend adventurers and high performance off-road users. The unique 8 stage compression and rebound adjustment provides a fully customised ride to suit any load application. The patented inbuilt hydraulic bump-stop provides the perfect solution for vehicles that experience suspension bottoming at high speeds or when heavily loaded. As the suspension reaches maximum compression, the internal bump stop progressively increases damping resistance for maximum impact control. As a result, the vehicle and occupants are protected from high stress loads. The innovative monotube design consists of a single wall steel tube construction which ensures direct heat dissipation.

Specifications

Material:	Monotube 52mm Smooth bore seamless tube body. Brushed clear coated body finish.
Size:	52mm Big bore piston with 20mm hard chromed alloy steel piston rod with remote reservoir for increased oil capacity.
Suits:	Rear 50mm Lift. Stone guard included. Requires optional Reservoir piggyback clamp.
Tech:	8 Stage compression and rebound adjustability with in-built hydraulic bump stop. 3yr /100,000km warranty.

Compatible Vehicles

TOYOTA LANDCRUISER WAGON 200 SERIES 11/07-08/15 GX
TOYOTA LANDCRUISER WAGON 200 SERIES 11/07-08/15 GXL
TOYOTA LANDCRUISER WAGON 200 SERIES 09/15-10/21 GX
TOYOTA LANDCRUISER WAGON 200 SERIES 09/15-10/21 GXL
TOYOTA LANDCRUISER WAGON 200 SERIES 09/15-10/21 VX/SAHARA
TOYOTA LANDCRUISER WAGON 200 SERIES 11/07-08/15 VX/SAHARA

Reviews

Shipping Info & Returns

Delivery costs and timeframes are subject to your location and the product(s) in your order. During the checkout, please enter your delivery address to get the latest costs and timeframes available for your order.

To view our returns policy, please click here.

Package Dimensions

Weight	5.700000 kg
Length	290 mm
Width	740 mm
Height	170 mm

Installation

Approximate Fitting Time: 1hours
Suggested Fitting Cost: $145
Requires Reservoir Mount Kit – 658RMKITR82A (Non KDSS) or 658RMKITRK82A (With KDSS)
Fitting Instructions

Suggested time for fitment and fitment costs are an approximate figure only, actual labour costs may vary. See in-store for details.

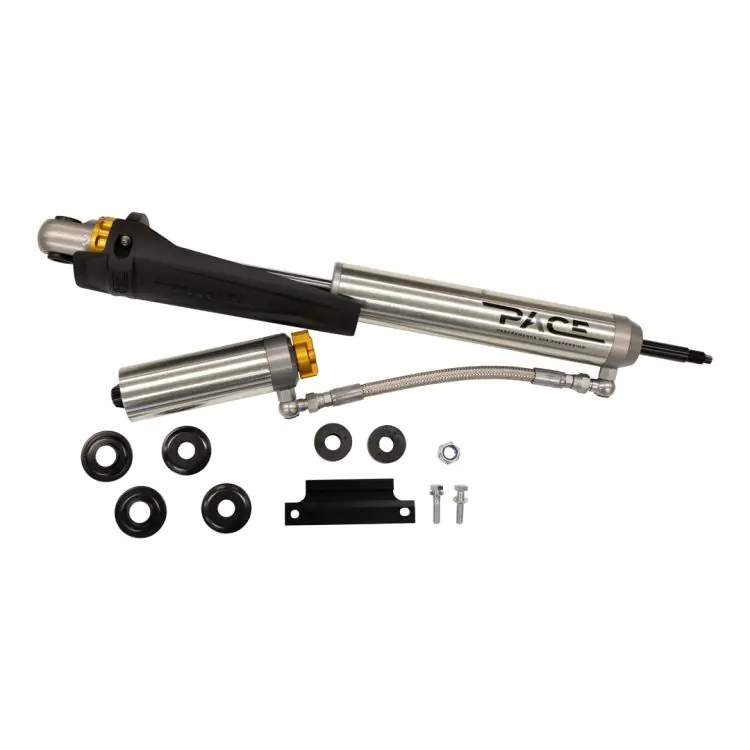

PACE REMOTE RESERVOIR SHOCK ASSEMBLY
